I’ve been blogging and vlogging about Azure REST APIs with Postman for a while now and often get asked why I don’t use Postman’s built in OAuth 2.0 provider. The reason is that when you use the provider you have to manually click the “Get New Access Token” button in Postman to get the token, which isn’t possible when I need to automate the execution of my Postman collections.

If you are fine with clicking that button when your token expires, then this post is for you, if you would like to use the pre-request script that auto-fetches a new token when it expires, then check out my Azure REST APIs with Postman blog.

Here’s how to use Postman’s OAuth2 provider with Azure REST APIs.

Azure SDKs

Before we go too far into this Azure REST APIs with Postman OAuth 2.0 edition blog post, I want to make sure that you know you don’t need to use the Azure REST APIs to interact with Azure resources. So many people have reached out to me over the years asking for Azure REST help who didn’t know we have SDKs in many languages, including .NET, Python, Java, JavaScript/TypeScript, Go, C++, C, Android, iOS, PHP, and Ruby - and that they work across operating systems - and are available in their favorite package managers. In my opinion, if you don’t mind taking on the dependency of the Microsoft supported library, then it sure beats building the libraries yourself. Also, the new Azure SDKs include features like logging, retries, and are fully supported by a sizable team at Microsoft.

I understand if you want to use the REST APIs directly, but I just want you to know that the libraries exist as well.

You can find the libraries here: https://azure.com/sdk and a 3 min “Introducing the Azure SDKs” video here: https://aka.ms/azsdk/intro and all the source for the libraries can be found here: https://github.com/azure/azure-sdk

Postman

Postman is a tool that enables you to call the Azure REST APIs via a graphical interface. You can install it here: Download Postman. We are using Postman v8.0.5 for this post.

Azure CLI

The Azure CLI is a command line tool that allows you to manage and interact with Azure resources, including the ability to get the necessary accounts and tokens required to call the Azure REST APIs. We’ll use it to create a service principal, which will be used to get the tokens we need to make Azure REST API requests.

Installation

You can either use the Azure Cloud Shell or install the Azure CLI locally.

Cloud Shell

The Azure Cloud shell is an in-browser terminal interface that allows you to execute Azure CLI commands without installing the Azure CLI locally.

  1. Go to Azure Cloud Shell - https://shell.azure.com

Azure CLI Local Install

  1. Install the Azure CLI
  2. Login with:
az login
  1. Select your active Azure subscription with:
az account set -n {name of your sub}

Authentication

Azure REST API authentication is done via a Bearer token in the Authentication header. We’ll use a service principal to get that token for us. A service principal is an Azure account that allows you to perform actions on Azure resources. Think about it like a system account that you can assign roles to and get tokens with. You can optionally read all about Service Principals here: Applications and service principals. Note that there are other ways to authenticate with the Azure REST APIs, but in this post we will only cover the Bearer token and service principal approach. You can research all the various ways to authenticate with the Azure REST APIs here: Azure REST API Authentication.

We first need to create the service principal with the following Azure CLI command:

az ad sp create-for-rbac --role Contributor

This will output the information you need to setup Postman - you will need it later, so save it to a safe location.

az ad sp create-for-rbac output

{
  "appId": "798256c4-bbdc-4f7a-a20a-",
  "displayName": "azure-cli-2021-02-10-22-47-08",
  "name": "http://azure-cli-2021-02-10-22-47-08",
  "password": "",
  "tenant": "72f988bf-86f1-41af-91ab-"
}

Postman Setup

Now that we have the service principal created, it is time to configure Postman.

I created this sample collection to help you get started. Click on the following “Run in Postman” button to open that collection.

Run in Postman

Here’s the direct link, just in case that button doesn’t work for you: https://app.getpostman.com/run-collection/f7a84bebc6c08df804ec

  1. Choose “Postman for Windows”

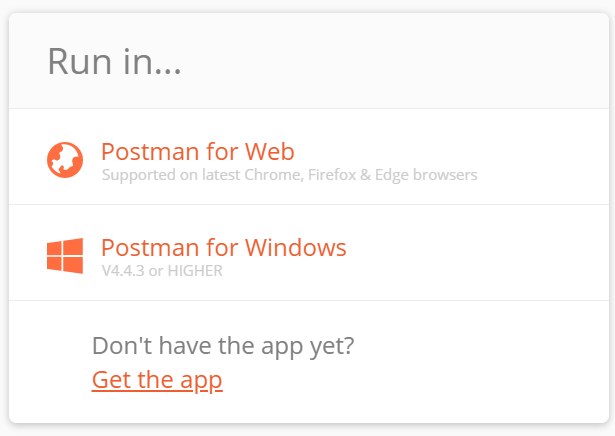

Postman run in options

  1. Choose the workspace you want to import the Azure REST 2021 OAuth 2.0 collection into.

Postman select workspace

  1. You will now see the Azure REST 2021 OAuth 2.0 collection in Postman.

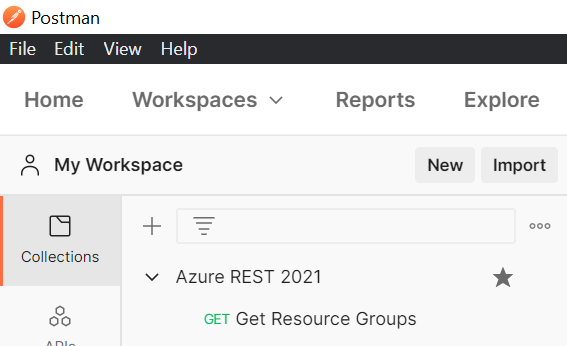

Postman collection in workspace

Variables

Postman allows you to set variables at various levels, you can read all about variables and scopes here: Postman: Using variables. In this example, we’ll use “Collection level” variables.

Click on the collection name, and then click on the “Variables” tab, you’ll see the variables that need to be set in order to get the token for each Azure REST API call.

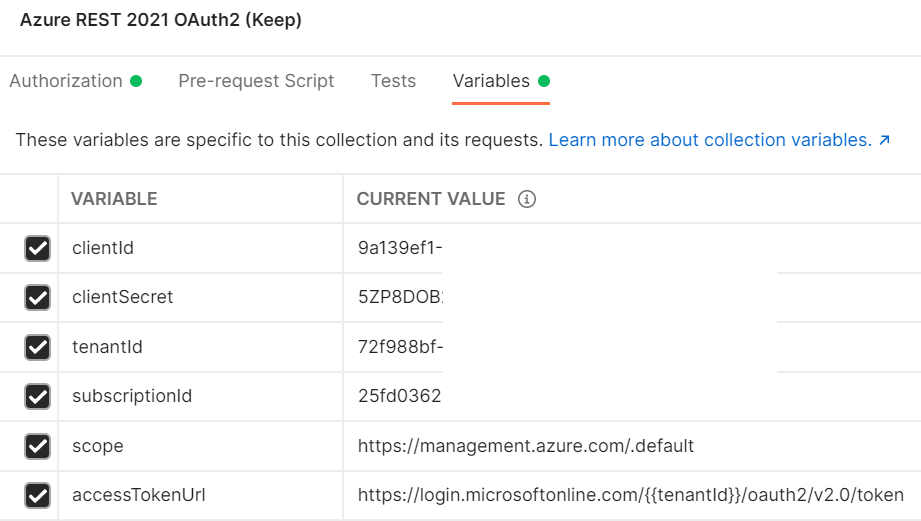

Postman variables

Go through and set each of these variables based on the “Notes” column below.

Variable Name Current Value Notes
clientId This is the value of appId from the service principal creation output above.
clientSecret This is the value of password from the service principal creation output above.
tenantId This is the value of tenantId from the service principal creation output above.
subscriptionId You can get this with this Azure CLI command az account show --query id -o tsv
scope https://management.azure.com/.default The default value is for managing Azure resources.
accessTokenUrl https://login.microsoftonline.com/{{tenantId}}/oauth2/v2.0/token You shouldn’t need to change this.

VERY IMPORTANT: Make sure you click the “Save” button after you have set all your variables!

Postman collection save button

Authorization

  1. Click on the Authorization tab and ensure that the following is set correctly:

If you imported my collection above with the “Run with Postman” button, then you can skip to step 2.

Type: OAuth 2.0
Add auth data to: Request Headers
Current Token:
- Header Prefix: Bearer
Configure New Token:
- Token Name: Bearer
- Grant Type: Client Credentials
- Access Token URL: {{tenantId}}
- Client ID: {{tenantId}}
- Client Secret: {{tenantId}}
- Scope: {{tenantId}}
- Client Authentication: Send client credentials in body

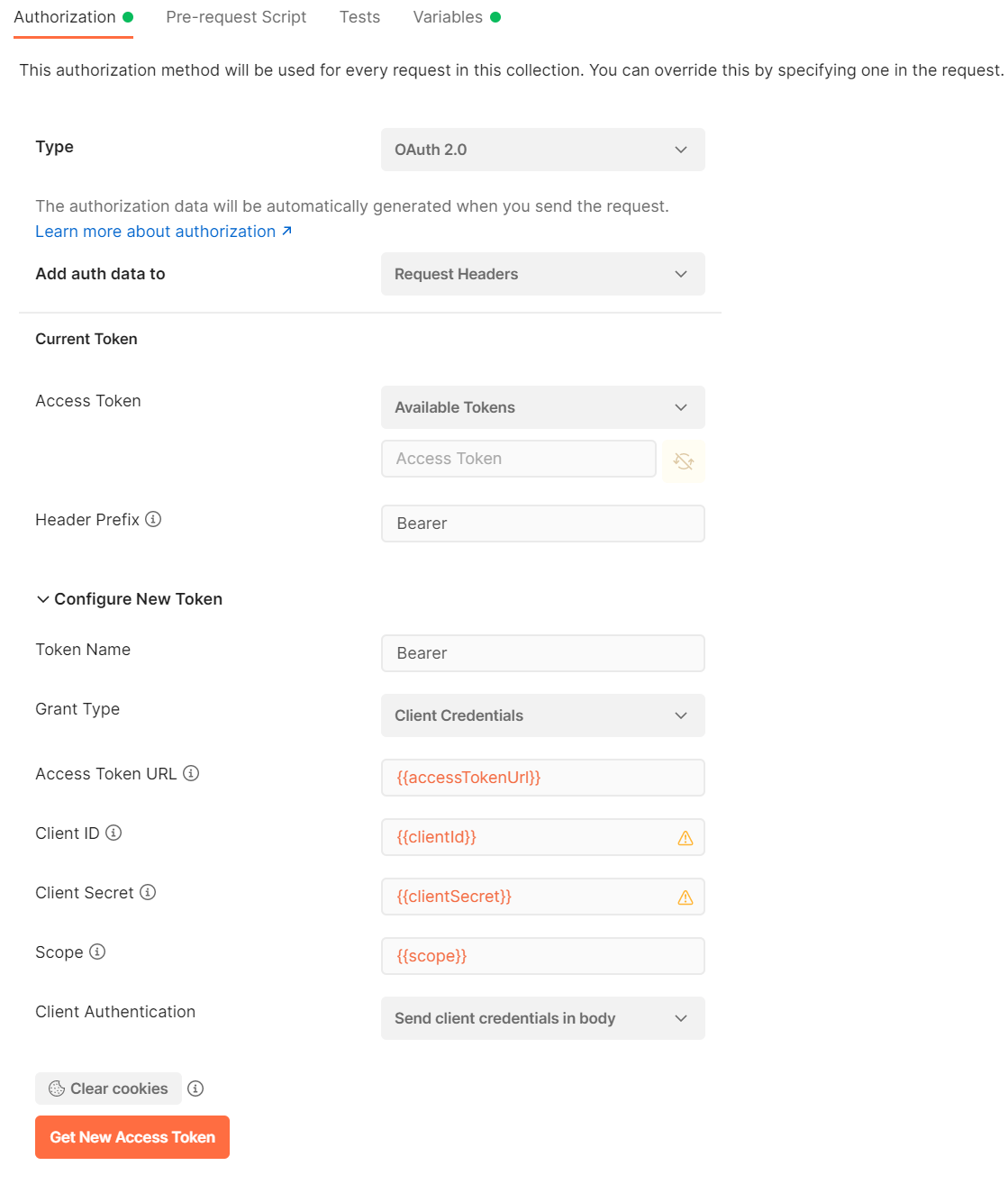

Authentication tab

  1. Click on the “Get New Access Token” button

Get new access token button

You will then see the Authentication complete dialog.

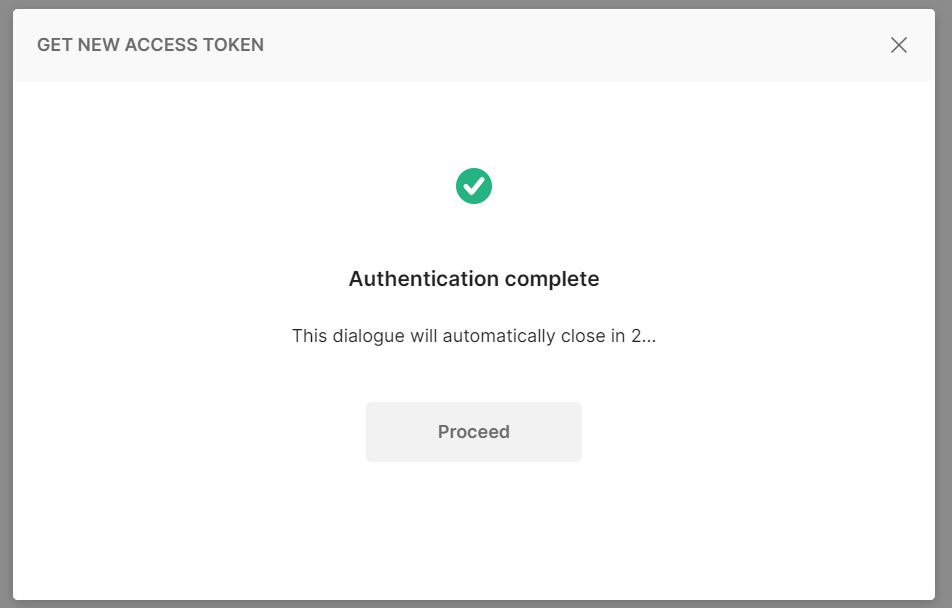

Authentication complete dialog

  1. Under “Manage Access Tokens” click the “Use Token” button.

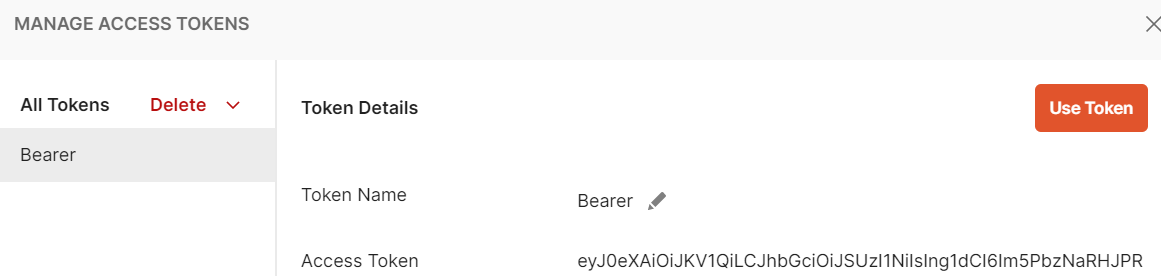

"Use Token" button

You will then see the token in the textbox under the available tokens dropdown.

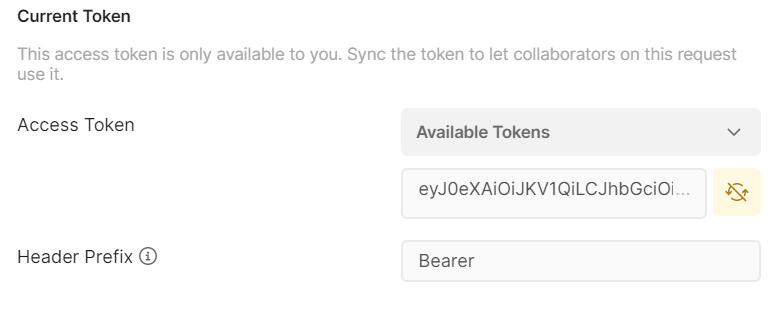

Available tokens

VERY IMPORTANT: Make sure you click the “Save” button after you have set all your variables!

Postman collection save button

Execute “Get Resource Groups” Request

It is now time to execute our first request. I included a sample “Get Resource Groups” request in the collection.

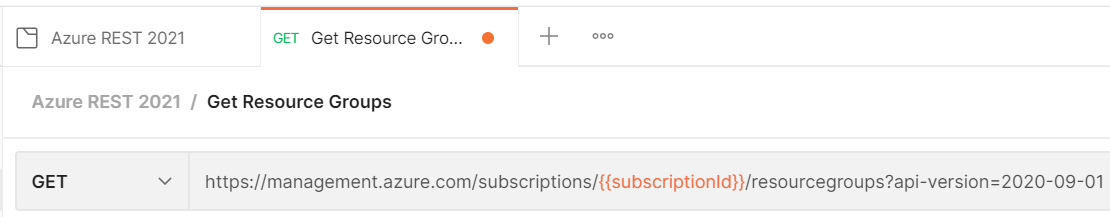

Postman Get resource groups request

Click on that request, and then click the blue “Send” button.

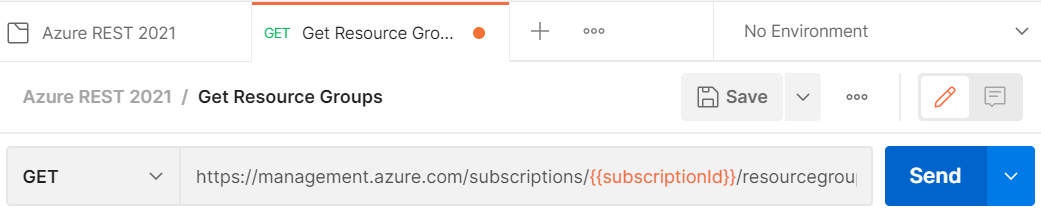

Postman blue send button

You will then see the output of all your resources groups in the response pane.

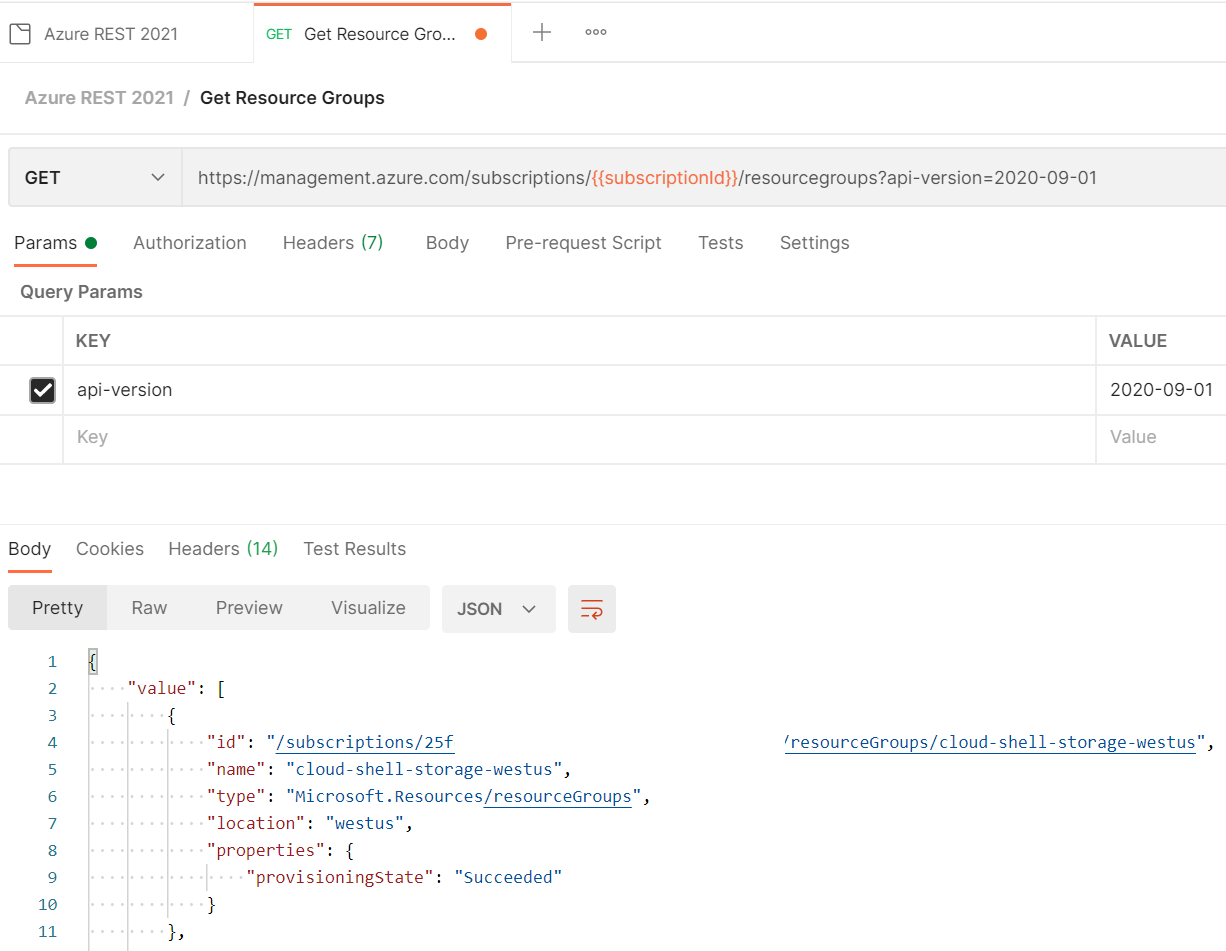

Postman get resource groups output

Execute “Create Resource Group” Request

You just saw how we can execute a simple GET request. Here’s how to do a PUT to create a resource group. You can find the full docs for the Resource Group, and all the other Azure REST APIs here: Resource Groups - Create Or Update

Click on the “Create Resource Group” request.

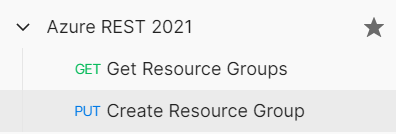

Postman create resource group request

You will notice that we change the HTTP VERB to PUT and added the resource group name to the URL.

Postman verb and resource group name

We also added a body to supply the location, which is required for this request.

In order to set the body you need to do the following:

Postman body

  1. Click on the “Body” tab under the request URI
  2. Select the “Raw” radio button.
  3. Select “JSON” in the Content-Type dropdown
  4. Enter the JSON body into the Body textbox:
{"location": "westus"}

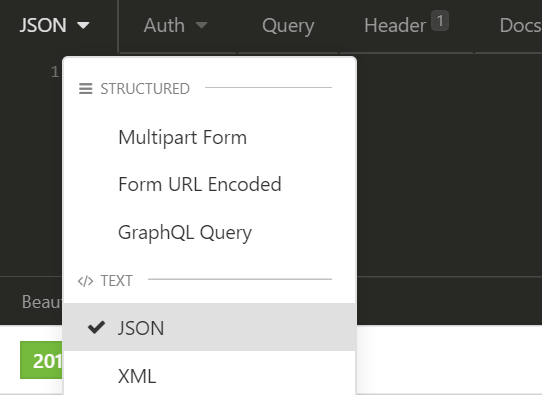

Postman body content type

All parameters for all requests can be found in the Azure REST documentation.

Now you can click the blue “Send” button and then see the output in the response output pane:

Postman create resource group output

Conclusion

That’s my Azure REST APIs with Postman’s OAuth 2.0 Provider blog. I hope you found this helpful. Please leave a comment and share with your friends.

Thanks,
Jon
